The Scott L. and Nancy M. Carmona Family Performance Racing Lab (P103)

RTEmagicC_racelab1_01 RTEmagicC_racelab2_01

The Scott L. and Nancy M. Carmona Family Performance Racing Lab supports the Cardinal Formula Racing team, a course in automotive engines, and senior design projects. This lab has approximately 2,000 sq. ft. for the assembly of engines and FSAE style race cars. Vehicle body creation can be accomplish by setting body components or fixtures directly to a 4ft by 8ft bed plate. This bed plate is directly mounted in the floor of the facility and is under the crane way. A 175 HP engine dynamometer allows students to evaluate engine performance. The dynamometer has modern controls, an attached flow bench, and data acquisition. A composite manufacturing facility is available for students to learn carbon composite manufacturing. The composite facility has equipment for vacuum bagging and compression molding techniques.

Student working on FSAE race car chassis design.

Equipment

  • 175 HP Schenk engine dynamometer controlled by a SuperFlow XConsole
  • Flow bench w/ head flow attachment and wet flow capabilities
  • Fuel injector flow bench
  • Composite vacuum bagging system
  • Composite compression molding system
  • Freezer for ‘prepreg’ carbon fiber storage
  • Tire changer
  • 4’ x 8’ Bed plate
  • CamProPlus camshaft profile measuring device
  • Portable oven trailer
  • Tube bender
  • Press break
  • 20-ton shop press
  • Complete set of hand tools
  • Many specialty engine building tools

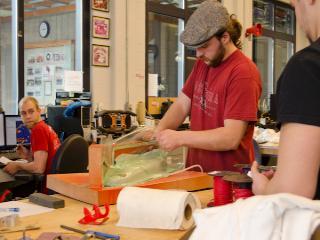

Students removing bag and seals after curing a carbon fiber component.
